With this function,
the authorized person – the one who knows the password
of the tracker,
can know the geographic coordinates, location, speed,
direction, and other related information of the car
anytime in any place. The report methods can be via SMS
short message service. You can also select
a one time report or continuous report (tracking
function).
You can monitor the situation inside the vehicle remotely
from mobile phone by sending a SMS command to this
device, without interfering the persons in the car. With
this real-time surveillance function, you can monitor
the situation of your loved one and/or your car, live &
real-time.
When park your car or leave your valuable asset at a
certain place, you can activate “Park” (Geo-fence) function
to guard it. The unit will send a SMS message to the preset
phone number, when someone moves the car or the asset
without permission over a preset distance. The accuracy of
GPS positioning is liable to be affected by time, weather,
and other environmental factors. It is suggested to set the
geo-fence range over 200 meters.
The device comes with GPS data logger function. When GSM Network is not available, the GPS data will be stored in the memory upto 17500 records, which can save the
GPS position data for 12 days, if the transmission interval set to 60 seconds/ time. The logged data will be sent back to server automatically, once when the device receives GSM signal again.
-
Can send back data based on the preset time internal
-
Can send back data based on the driving distance
-
Can read the volt data by sending SMS
-
Can activate the function for getting position data thru phone call
-
Set the time table
for the GPS tracker to send back data every day
at the preset time automatically
-
Can activate Sleep Mode
-
Can enter into Sleep Mode, if the vehicle is not moved
-
Set the mode for Geo-fence Park function response via SMS or TEL
-
Function not to send back data if the speed is slower than defined km/ hour for continuous defined time
-
No monthly service charges to pay to call center
-
A-GPS position indoor function - just application for
Tele-communication System Supplier
|
Panel
Description |
|
|
|

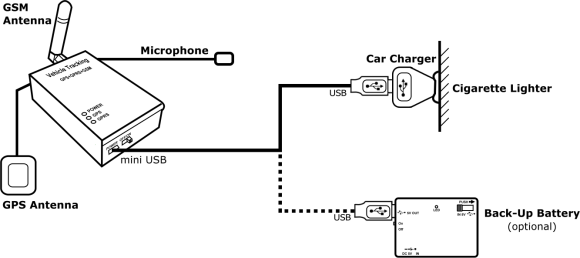

Power Charging |
|

|
|
SMS Track |
|
With this intuitive tracking software, you can track easily in office/ home or on the roads by your own PDA Phone. Neither service nor related contracts from call center are required. Thru this tracking software, the GPS data received from the vehicle tracker will be forwarded to the navigation map installed in your PDA Phone automatically, so that you can see the vehicle position on the map, i/o just the meaningless latitude & longitude data.
>>Learn
More
● Easy Step
123:

● Key
functions of the software:

● System
Structure:

|
|
Track the position by mobile phone |
 |
|
Applications |
|

|
|
Specifications |
|
AVL-900(M) Hardware
Specifications |
|
Dimensions |
79.0 x 48.0 x 24.0 (mm) |
|
Bandwidth |
EGSM900:
TX880-915MHz,
RX 925-960MHz
DCS1800:
TX 1710-1785MHz,
RX 1805-1880MHz
GSM850:
TX824-849MHz,
RX 869-894MHz
GSM1900:
TX1850-1910MHz,
RX 1930-1990MHz |
|
Maximum
RF Output Power |
EGSM900,
GSM850:
33 dBm(2W)
GSM1800
GSM1900:
30 dBm(1W) |
|
Resistance |
50Ω |
|
Transmission Speed |
Circuit switched 4.8/9.6 kbps |
|
Sensitivity |
-159 dBm |
|
Frequency |
L1,1575.42MHZ |
|
Channels |
20 |
|
Position Accuracy |
10 meters CEP without SA |
|
Speed Accuracy |
0.1 meters/second,
without SA |
|
Coordinate System |
WGS-84 |
|
Hot Start |
< 8 Seconds |
|
Warm Start |
< 38 Seconds |
|
Cold Start |
< 60 Seconds |
|
Height |
18000 meters(60000
feet)max. |
|
Speed |
515 meters / second(1000
knots)max. |
|
Acceleration |
4g max. |
|
Working Voltage |
5 to 24 VDC |
|
Power Consumption
in stand-by mode |
0.8W |
|
Power Consumption
in working mode |
1.5~2W |
|
Housing |
Metal |
|
Operation Temperature |
-20°C to +70°C |
|
Storage Temperature |
-30°C to +80°C |
|
Humidity |
0~95%, non-condensing |
|
|
