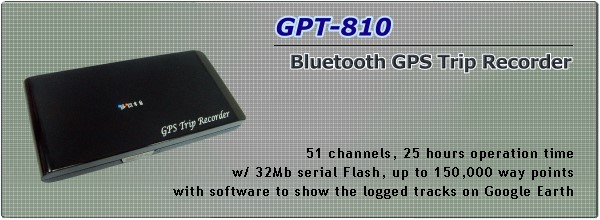

GPT-810 Bluetooth GPS Trip Recorder

Overview

^GPT-810 Bluetooth GPS Trip Recorder

At just 10mm thick, this BT GPS logger features an all in one, cost effective portable GPS logging solution. With its on-board memory, it allows you to log your route. Through user friendly utility, it shows your track on Google Maps. And by coupling smart power-saving options with fuzzy auto on/off, it is also the most power-efficient receiver available. Highly sensitive and super-efficient, this device enjoys wide consumer appeal.

Features

w/ 32Mb serial Flash, up to 150,000 way points
Bluetooth GPS with 51 channels
Ultra high sensitivity up to -158 dBm (Tracking)
Smart Power Save Mechanism
25 hours operation time
Fuzzy Auto On/Off

	Catalog
	User's Manual

Application

Log your travels & show the tracks on Google Earth or Google Maps
Manage business trip expenses
Show your photos on Google Maps
Keep an eye on valuable merchandise
Support photo Geo Tagging

GPS Photo Tagger Software

Support Windows, XP, and Vista
Free update
User friendly interface
Able to upload to Flickr
Able to export to KMZ, NMEA183, and GPX format

Able to view speed and altitude
Multi-languages supported
Photo slide show
Track management
Location searching engine

Specifications

General
Frequency	L1, 1575.42MHz
C/A Code	1.023MHz chip rate
Channels	51 CH for tracking
Antenna	Built-in patch with LNA
DGPS	WAAS, EGNOS, MSAS
Datum	WGS84
Acquisition
Cold Start	36 sec, average
Warm Start	33 sec, average
Hot Start	1 sec, average
Reacquisition	<1sec
Accuracy (none DGPS)
Position	Without aid: 3.0m 2D-RMS <3m CEP(50%) without SA (horizontal)
Velocity	0.1 m/sec without SA
Time	50 ns RMS
Sensitivity	-158dBm
Dynamic
Altitude	< 18,000m
Velocity	< 515m/sec
Acceleration	4g max.
Protocol
GPS Output	NMEA-0183 (V3.01) GGA, GSA, GSV, RMC (default)
	GLL, VTG (optional)
	Data bit : 8, stop bit : 1(Default)
Interface
Bluetooth	Version 1.2 compliant
Output Power	Class 2 (10 meter in free space)
Frequency	2.4 to 2.48 GHz
Power
Battery	Rechargeable 750mAh Lithium battery
Work Hours	18 hrs
Standby Time	250 hrs
DC Input	5V
Power Charge	Mini USB
Environmental
Operating	- 10 °C to + °C
Storage	- 20 to + 60
Charging	0 to + 45
Humidity	5% to 90% non-condensing
Physical
Dimension	93.5 x 46 x 10.8mm
Weight	49.5g
Others
Certification	CE / FCC
LED	Bluetooth, Navigation, Battery / changer status
