Data Switch

- GooTrac can link to the Remote GooTrac Server for data sharing.

The below is the main screen of GooTrac program. The top column displays the GPS data received directly from GPS Trackers via GPRS; while the bottom column displays the GPS data received by the Local GooTrac from Remote GooTrac via internet.

ˇ@

(1) Data Server

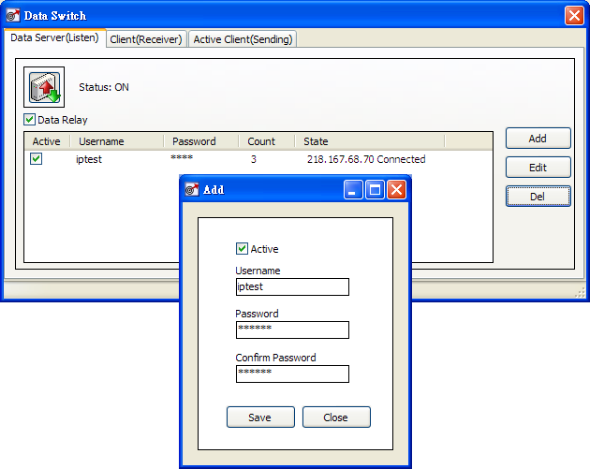

FunctionˇGTo forward the GPS Data received via GPRS from the GPS Trackers to all the logged in computers (Clients) thru internet. The below image illustrates how to set up the accounts in Data Server.

ˇ@

ˇ@

Server Activate

Users can log in this computer

Server Disable

Let users can not log in this computer

ˇ@

ˇ@

ˇ@

(2) Client

FunctionˇGLink to Remote GooTrac Server to get the GPS Data received by the Remote GooTrac Server.

ˇ@

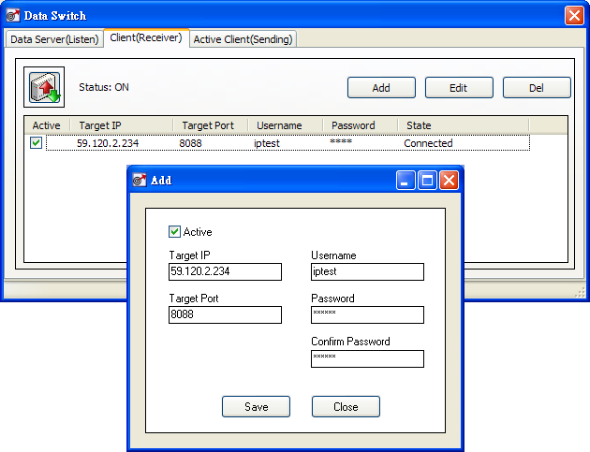

The below image explains how to link to the server. Please key-in the IP Address of Remote GooTrac Server; ˇ§8088ˇ¨ as the Delivery Listen Port; and Username/ Password as set up in Data Server.

ˇ@

ˇ@

Client Activate

Log in the remote server to get the GPS data

Client Disable

Stop the connection;
stop receiving GPS data from the server.

ˇ@

ˇ@

ˇ@

(3) Active Client

FunctionˇGLink to the remote server, and forward the GPS data to the server actively.

ApplicationˇGFor the data server with firewall. It avoids Clients unable to log-in the data server protected by firewall.

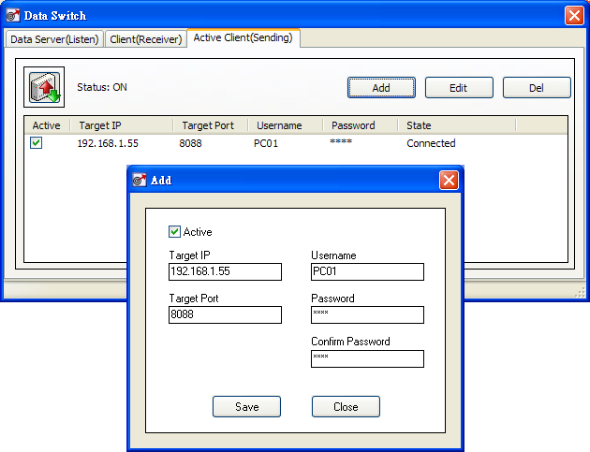

The below image explains how to set up Activate Client. Please key- in the IP Address of the remote server; ˇ§8088ˇ¨ as the Port; and Username/ Password as set up in the remote server.

ˇ@

ˇ@

Client Active

Log in the remote server for forwarding the GPS data actively.

Client Disable

Dis-connect to the remote server.

ˇ@

ˇ@

ˇ@

(4) Allow List (Data Server)

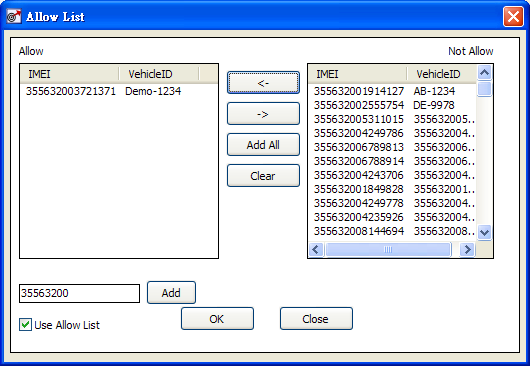

Function: To select the vehicle to be monitored by each account. Double click the Username; the ˇ§Allow Listˇ¨ window will prompt. Select the vehicle to be monitored by this Client; and move the data from the right column to the left column.

ˇ@

ˇ@

Tick ˇ§Use Allow Listˇ¨

Only the vehicle data in the left column (Allow List) will be forwarded to this account.

Un-tick ˇ§User Allow Listˇ¨

All the vehicle data will be forwarded to this account.
