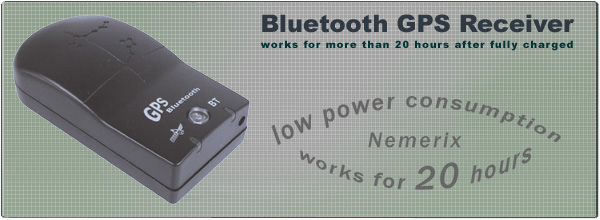

GPT-700
Bluetooth GPS Receiver
-
GPS and
Bluetooth 2-in-1 receiver
-
Very low power
consumption (typical: 45mA)
-
Built-in
rechargeable/ replaceable Li-ion battery
-
Embedded
Bluetooth module for wireless connection
-
With clear LED
for GPS, Battery and Bluetooth status
-
Nemerix GPS
module, 16 channels all in view tracking
-
Built-in low
noise high sensitivity active antenna
-
External
antenna port for active MMCX antenna
-
Dimensions: 89
mm * 47 mm * 23 mm
-
Weight: 74
grams (battery included)
|
|
|
|
|
|
Specifications |
|
|
General |
Accuracy |
|
GPS Chip |
Nemerix GPS Module |
Position |
5M CEP(50%); 9M (90%) |
|
Frequency |
L1, 1575.42Mhz |
Velocity |
0.1m/ sec w/o S/A |
|
C/A Code |
1.023Mhz chip rate |
Time |
100ns synchronized to GPS time |
|
Channels |
16ch all in view tracking |
Datum |
WGS-84 |
|
built-in low noise antenna |
Sensitivity |
-147dBm tracking |
|
port for external MMCX antenna |
Data Rate |
9600 bps |
|
Acquisition Rate |
Dynamic Conditions |
|
Cold Start |
45 seconds, average |
Altitude |
<18,000M |
|
Warm Start |
38 seconds, average |
velocity |
<515m/sec. |
|
Hot Start |
10 seconds, average |
Acceleration |
<4g |
|
Reacquisition |
100ms, average |
Motion Jerk |
20m/sec. |
|
Power |
Interface |
|
Battery |
Built-in rechargeable Li-ion battery
and 5V DC input |
Connection |
Communicate with Host Platform
via Bluetooth serial port profile |
|
Operation Current |
45mA (typical) |
Protocol |
NMEA-0183 (3.01) - GGA, GSA, GSV, RMC |
|
Operation Time |
20 hours |
Baud Rate |
9600 bps (data bit: 8, stop bit: 1) |
|
Dimensions |
89mm * 47mm * 23mm |
Packing |
20pcs/ carton/ 9.50kgs/ 1.70cuft. |
|
|
|
|
|
|
|
