AVL-901(B)
GPS Vehicle Tracker
|
|
|
|
[Hardware]
-
High
sensitivity GPS: -159 dBm
- German Quad band (850/900/1800/1900 MHz) GSM, SMS & GPRS
-
Ttrack your vehicle all the time
-
Geo-fence for car's security & management
-
Report car's position at the preset time interval
-
Use your own PC, NB, or Smart Phone to do the tracking
-
Optional external voltage regulator to eliminate power surge
-
Good for both DIY and call center based tracking
[GooLocate]
A multifunctional PC base tracking software for you to set up a Fleet Management System at your office or home for tracking over Maps from 1~500 vehicles.
|
|
|
|
|
- - German Quadband (850/900/1800/1900 MHz) GSM,GPRS
- High sensitivity GPS antenna,strong receptivity
- Geo-fence for enter,timeout & exit alarms
- FOTA (Firmware updating via GPRS)
- Report car's position at the preset time interval
- Data Log in blind area and auto upload .
- Support Two fixed IP Addresses
- Real-time tracking and history trace replay
- Support Sleep Mode
- Send back data based on timetable,driving distance
- Read the volt data by sending SMS message
- Sms to get Google maps locate of smart phone
- Google,Bing,Openstreet 3 maps
- Remote immobilization
- CE,FCC,NCC Approval, 3 Years Warranty
|
Panel

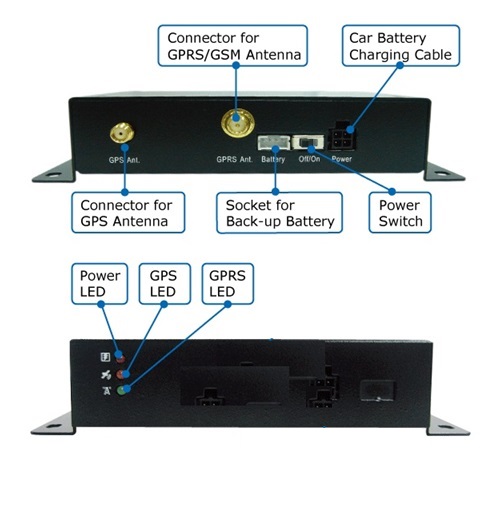

Description |
|
|
|

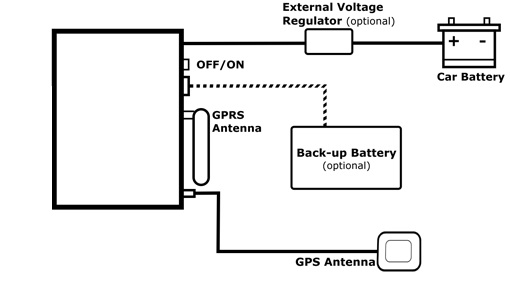

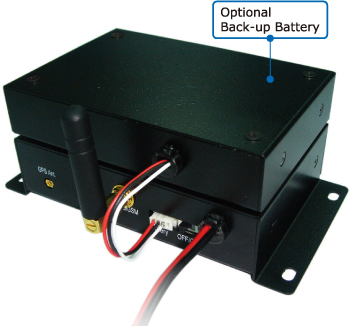

Power Charging |
|
|
|
GooLocate |
|
A tracking software for you to track over Maps real-time by your own PC; no need to pay for the maps or service charges. It can also keep history records for you to replay afterwards. As to reports, it can provide you mileage/ routes/ idle/ over-speed/ detailed activity and fleet summary reports for management purpose. Besides, GooLocate software supports "Remote Data Server" function. The data received by server can be forwarded to any PC links to the internet for data sharing. It enables you to set up a mini-control center by yourself.
>>Learn
More
|
|
|
| |
|
Specifications |
|
AVL-901(B) Hardware Specifications |
|
Weight |
320 grams |
|
Dimensions |
135mm x 76mm x 25mm (AVL unit) |
|
Bandwidth |
EGSM900:
TX880-915MHz,
RX
925-960MHz
DCS1800: TX
1710-1785MHz, RX
1805-1880MHz
GSM850: TX824-849MHz, RX
869-894MHz
GSM1900: TX1850-1910MHz,
RX
1930-1990MHz |
|
Max. RF Output Power |
EGSM900, GSM850: 33
dBm(2W)
GSM1800, GSM1900: 30
dBm(1W) |
|
Transmission Speed |
Circuit switched 4.8/9.6 kbps |
|
Resistance |
50Ω |
|
Sensitivity |
-159 dBm |
|
Frequency |
L1, 1575.42MHz |
|
Channels |
20
channels |
|
Position Accuracy |
10 meters CEP, w/o SA |
|
Speed Accuracy |
0.1 meter/ second, w/o SA |
|
Coordinate System |
WGS-84 |
|
Hot Start |
< 8 Seconds |
|
Warm Start |
< 38 Seconds |
|
Cold Start |
< 60 Seconds |
|
Height |
18000 meters（60000
feet）max. |
|
Speed |
515meters / second（1000
knots）max. |
|
Acceleration |
4g max. |
|
Working Voltage |
5
to
24 VDC |
|
Housing |
Metal |
|
Power Consumption
in stand-by mode |
1W |
|
Power Consumption
in working mode |
2W |
|
LED |
3 LEDs
showing Power, GPS and GSM status |
|
Operation Temperature |
-20°C to +70°C |
|
Storage Temperature |
-30°C to +80°C |
|
Humidity |
0~95%, non-condensing |
|
|
